D8+ Chain Motor vs Standard Electric Chain Hoist: What's the Difference?
Meta Description: If you're in entertainment rigging, you know D8+ chain motors cost more than industrial hoists. Here's exactly what you're paying for — and why it matters for stage safety.
If you've shopped for chain hoists recently, you've noticed something confusing:
A "standard" 500kg electric chain hoist from a warehouse supplier costs $400-600.
A "D8+" rated chain motor for stage rigging costs $800-1,200.
Same capacity. Same basic design. Why the gap? Are you paying for a label?
Short answer: No. The difference is real, and it matters when lives are on the line.
This guide breaks down exactly what D8+ means, how D8+ hoists differ from standard industrial models, and which one you actually need.
What Is D8+?
D8+ is not a formal ISO or EN standard. It's a de facto industry specification that emerged from European entertainment rigging — specifically from the German professional association VPLT and BGV-C1 / DIN 56950-1 requirements for suspended loads over people.
Think of D8+ as "what the entertainment industry decided a safe chain hoist should be."
The D8+ designation covers:
| Specification | D8+ Requirement |
|---|---|
| Duty rating | Minimum FEM 2m / ISO M5 (intermittent use, not continuous) |
| Brake system | Dual mechanical brakes (redundant) |
| Chain guide | Anti-jamming design (no twist entry) |
| Load chain | Grade 80 or higher (DAT or equivalent) |
| Noise level | ≤ 72 dB at rated load |
| Travel speed | 4 m/min (entertainment standard) |
| Motor protection | Thermal overload protection |
| Emergency stop | Red mushroom-head button, prominently positioned |
| Certification | CE + manufacturer declaration of conformity to DIN 56950-1 |
D8+ is not legally required everywhere — but most reputable rental companies in Europe, Australia, and North America now mandate it as a minimum.
Side-by-Side Comparison
| Feature | Standard Industrial Hoist | D8+ Chain Motor |
|---|---|---|
| Duty rating | FEM 1Am / ISO M3 (light industrial) | FEM 2m / ISO M5 (entertainment) |
| Brakes | Single mechanical brake | Dual redundant brakes |
| Chain guide | Basic entry guide | Anti-jamming (45° design in premium models) |
| Load chain | Grade 70 or generic | Grade 80+ DAT chain |
| Noise at load | 75-85 dB | ≤ 72 dB |
| Travel height | Fixed (3m, 6m, 10m) | Configurable per show |
| Hookup points | Hook only | Shackle + hook (rigger-compatible) |
| Chain bag | Not included | Standard (prevent chain pile hazards) |
| Pre-delivery inspection | Basic QC run | Full load test + chain elongation check |
| Typical price (500kg) | $400-600 | $800-1,200 |
Real-World Differences That Matter
1. Safety — Dual Brakes Save Lives
A standard hoist has one brake. If it fails — and they do fail, especially on old or abused units — the load drops.
D8+ requires two independent brakes (usually a disc brake + electro-mechanical brake). If one fails, the other catches the load. For a 500kg chain motor hanging over a stage with 200 people underneath, redundancy isn't optional.
2. Noise — The Difference Between a Show and a Distraction
Industrial hoists run at 75-85 dB. That's loud enough to ruin a quiet theatre scene or get picked up by lapel mics during a concert.
D8+ units are designed for ≤ 72 dB. Premium models (like Coreat's D8+ series) run at ≤ 68 dB — barely audible over stage ambient noise.
3. Chain Quality — Grade 80 Is Not a Suggestion
Standard hoists often ship with Grade 70 or unmarked chain. Grade 70 has lower tensile strength and higher elongation under load.
D8+ mandates Grade 80 (or higher) chain — the same standard used by European rigging suppliers. This means:
- Higher breaking load (typically 4:1 safety factor vs 5:1 in BGV-C1 requirements)
- Less chain stretch over time
- Better wear on chain guides
- Compatibility with European inspection standards
4. Chain Guide — The Anti-Jamming Difference
Ask any rigger: the most common hoist failure is chain twist/jam at the entry guide.
Standard industrial guides are narrow and aggressive. D8+ guides (especially the 45° design on Coreat and Mode hoists) allow the chain to self-correct before jamming.
Which One Should You Buy?
✅ Buy D8+ if you:
- Rig over people (theatres, concerts, corporate events)
- Rent to venues with European or Australian safety inspectors
- Need BGV-C1 / DIN 56950-1 compliance
- Are buying for a permanent installation with liability exposure
❌ Standard industrial hoist is OK if:
- You're lifting scenery that never goes over people
- You're in a warehouse or workshop (not over audience)
- You need a temporary solution and budget is the only constraint
- You're buying for industrial use (factory, warehouse, construction)
Warning: Don't mix industrial hoists into your D8+ inventory. A single standard hoist in a hire stock can fail inspection and get your entire rig shut down.
How Does Coreat's D8+ Compare?

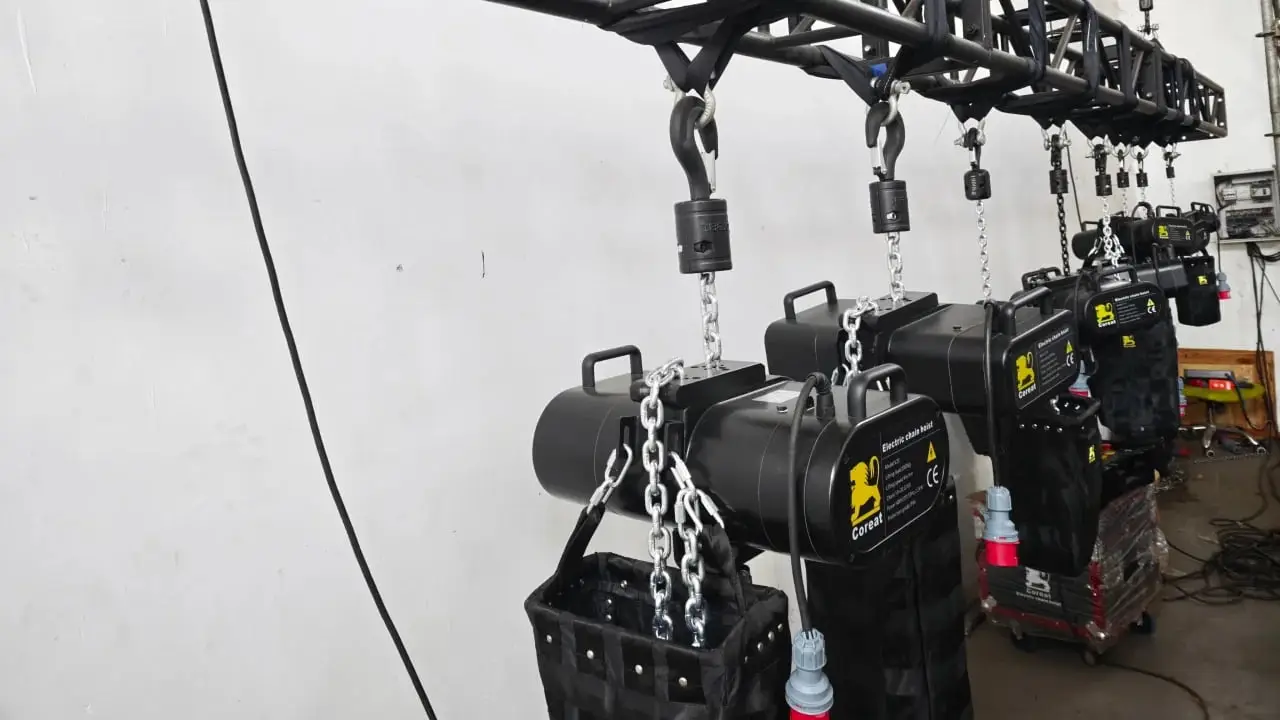

Coreat's D8+ series (250kg / 500kg / 1000kg) is designed to meet or exceed the D8+ de facto standard:
| Feature | Coreat D8+ |
|---|---|
| Dual brake | ✓ (disc + electro-mechanical) |
| ≤ 68 dB noise | ✓ (tested — whisper-quiet) |
| Grade 100 chain | ✓ (G100 , DAT chain optional) |
| 45° anti-jam chain guide | ✓ |
| IP54 protection | ✓ (IP66) |
| BGV-C1 compliant | ✓ |
| 1-year warranty | ✓ |
And at approximately 30-40% less than European brand equivalents (ChainMaster, Columbus McKinnon, Lifting Safety), Coreat offers the same safety standard without the brand markup.
Quick Decision Matrix
| Use Case | Recommended | Why |
|---|---|---|
| Broadway/West End theatre | D8+ | Dual brakes, noise, BGV-C1 |
| Arena concert tour | D8+ | Load variation, rental wear |
| School auditorium | D8+ | Liability concerns |
| TV studio | D8+ | Noise-critical environment |
| Backstage storage lift | Industrial OK | Never over people |
| Factory maintenance | Industrial OK | Industrial standard |
Final Takeaway
D8+ is not a marketing gimmick. It's a real engineering specification that makes chain motors safer, quieter, and more reliable for entertainment use.
If you're buying for stage, concert, or theatre — spend the extra $300-400. It's the cheapest insurance you'll ever buy.
Looking for D8+ chain motors? Coreat stocks 250kg, 500kg, and 1000kg D8+ units with CE certification and 1-year warranty. [Contact us] for a quote.
